All products can be customized in thickness, width, coating type and color. Cut-to-length service available.

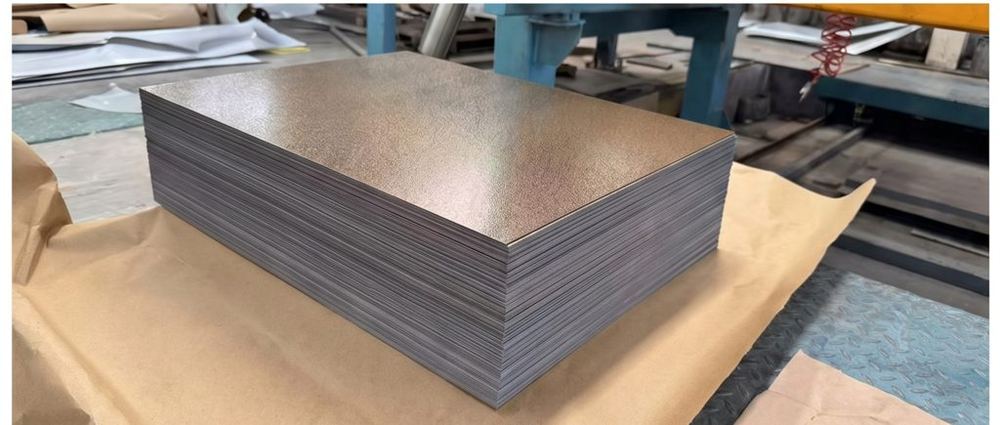

Pre-painted galvanized steel sheet (coil or flattened) with Zn coating 30–180 g/m². Bright finish, excellent corrosion resistance for appliance casings and construction.

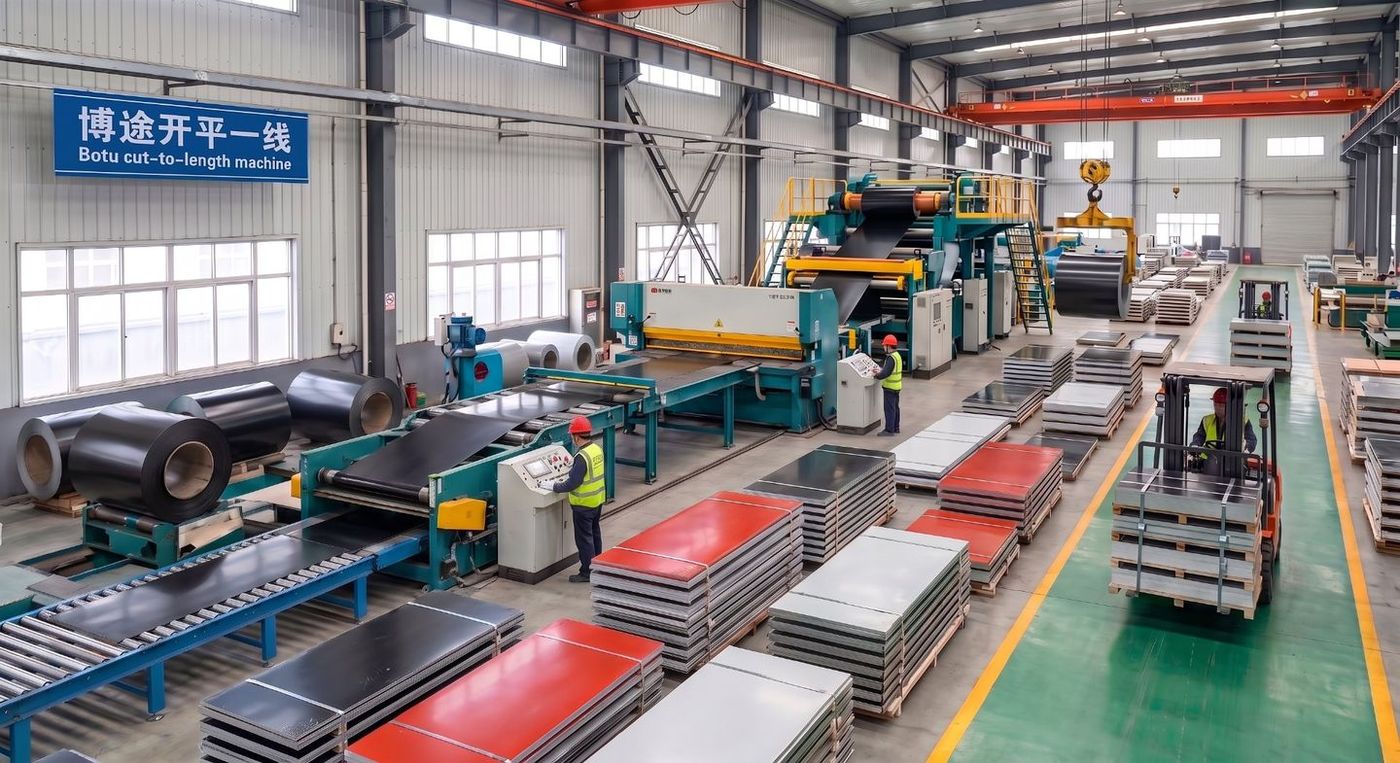

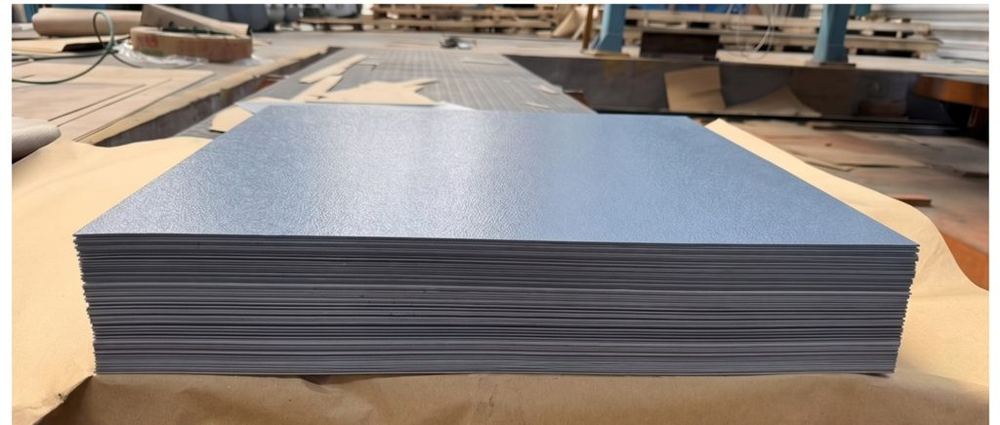

Our specialty: precision leveled and cut-to-length sheets for appliance stamping lines. Length tolerance ±1 mm, superior flatness.

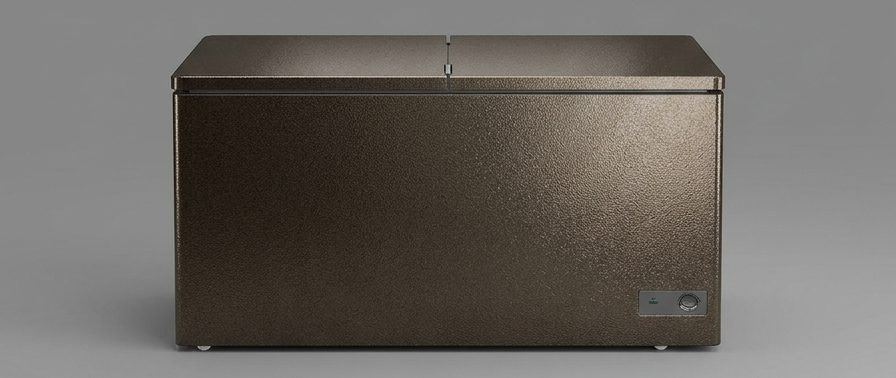

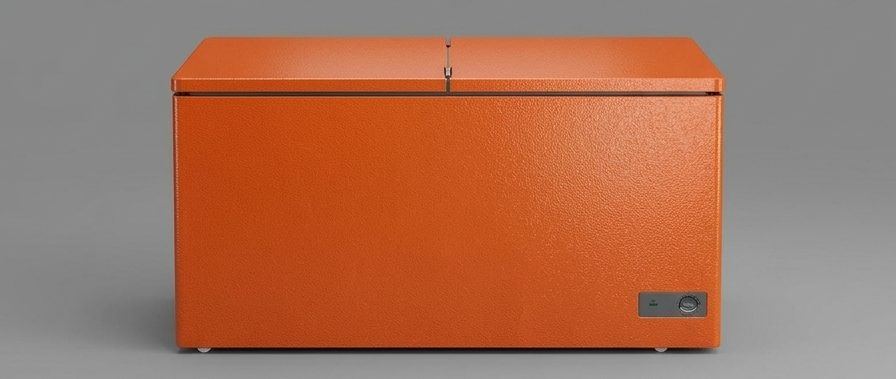

Dedicated for refrigerator cabinets & doors, washing machine outer tubs, air conditioner panels, water heater jackets and microwave cavities.

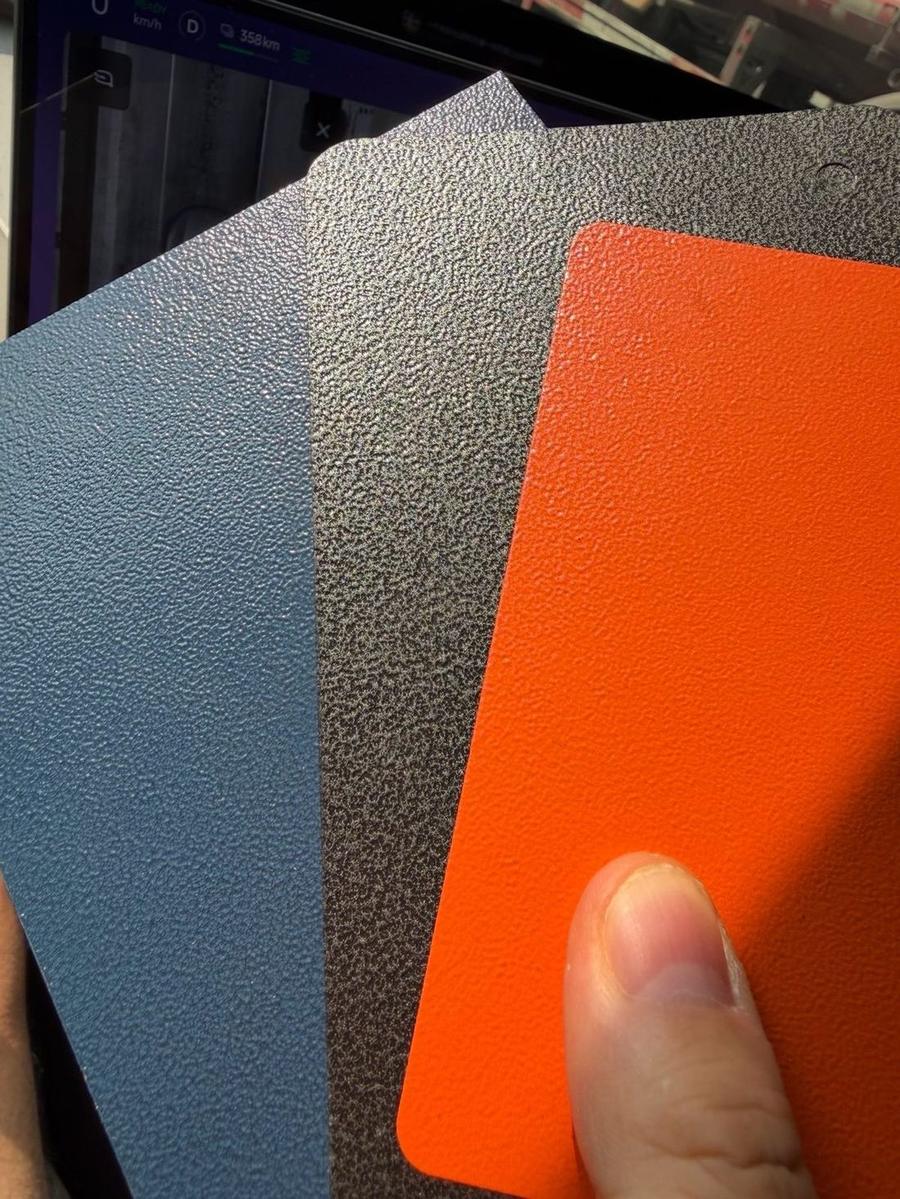

Full RAL / Pantone color system, plus wood grain, marble, brick and custom printed patterns for decorative and construction use.
Pre-painted galvalume (AZ 55–150 g/m²) with superior heat and corrosion resistance — ideal for outdoor panels and roofing.
Optional protective film on the coated surface to prevent scratches during deep drawing, transport and processing.
Custom specifications available on request — send us your drawing or sample.
| Item | Range | Remarks |
|---|---|---|
| Substrate | Galvanized Steel Sheet (GI) / Galvalume (GL) / Cold Rolled (CR) | Mill certified |
| Product Form | Coil / Flattened Sheet / Cut-to-Length (fixed length) | PCM & painted steel sheet available |
| Thickness | 0.12 mm – 1.2 mm | Tolerance ±0.02 mm |
| Width | 600 mm – 1250 mm | Slitting available |
| Coating type | PE / SMP / HDP / PU | Top 15–25 μm, back 5–8 μm |
| Zinc / AZ coating | Zn 30–180 g/m²; AZ 55–150 g/m² | Per customer requirement |
| Color | RAL, Pantone, custom | Color card matching |
| Cut-to-length | Length 300–6000 mm | Sheet flatness guaranteed |
| Packing | Waterproof paper + steel strapping, wooden pallet | Container loading optimized |
Related Keywords:
We produce to order. Tell us your substrate, thickness, color and application — we will propose the best solution and price.
Send Your Requirement
